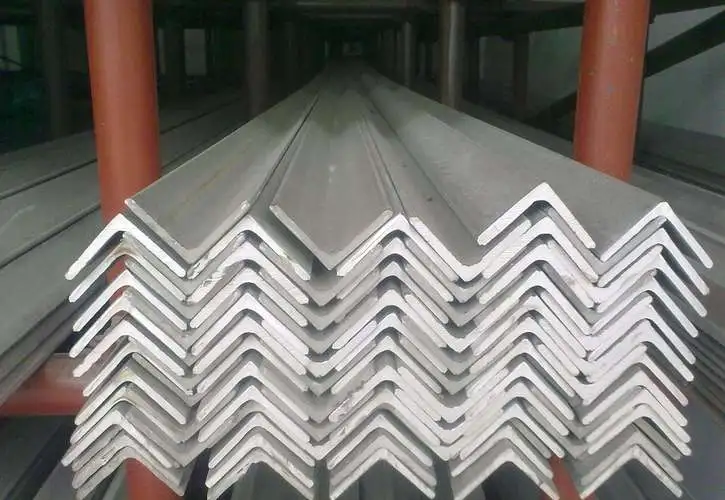

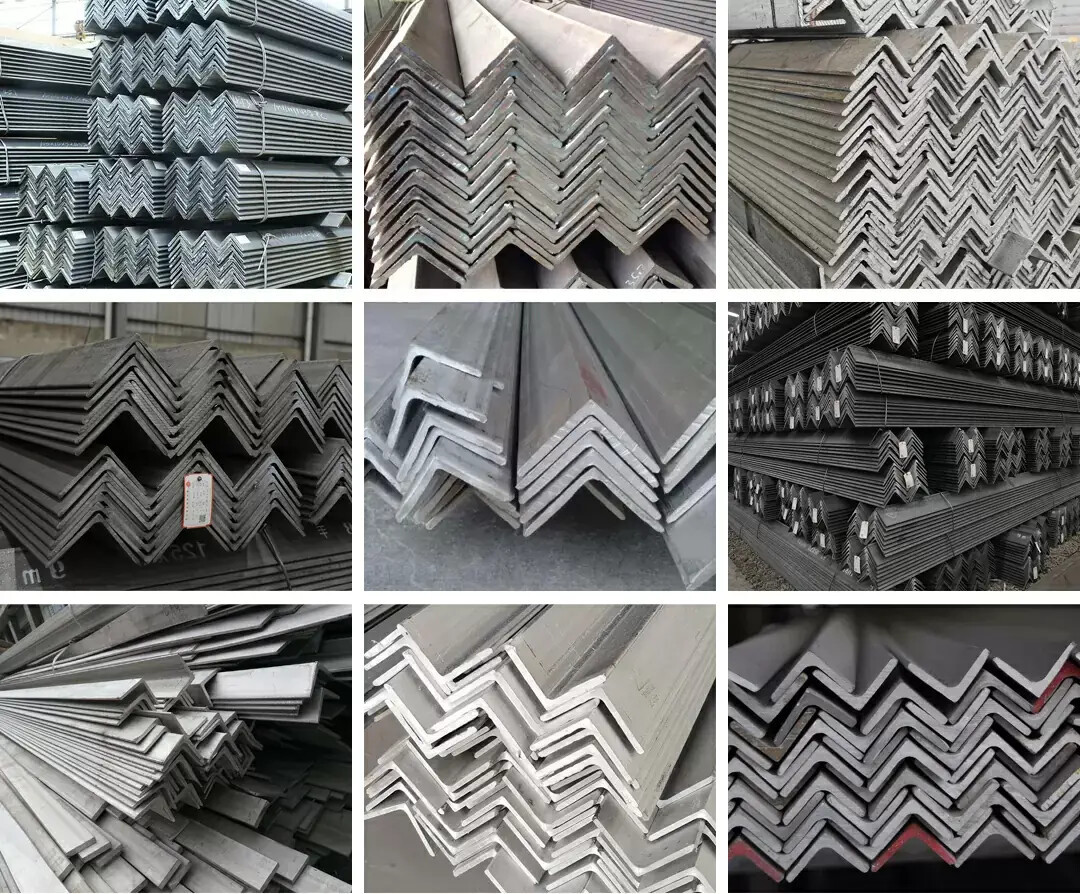

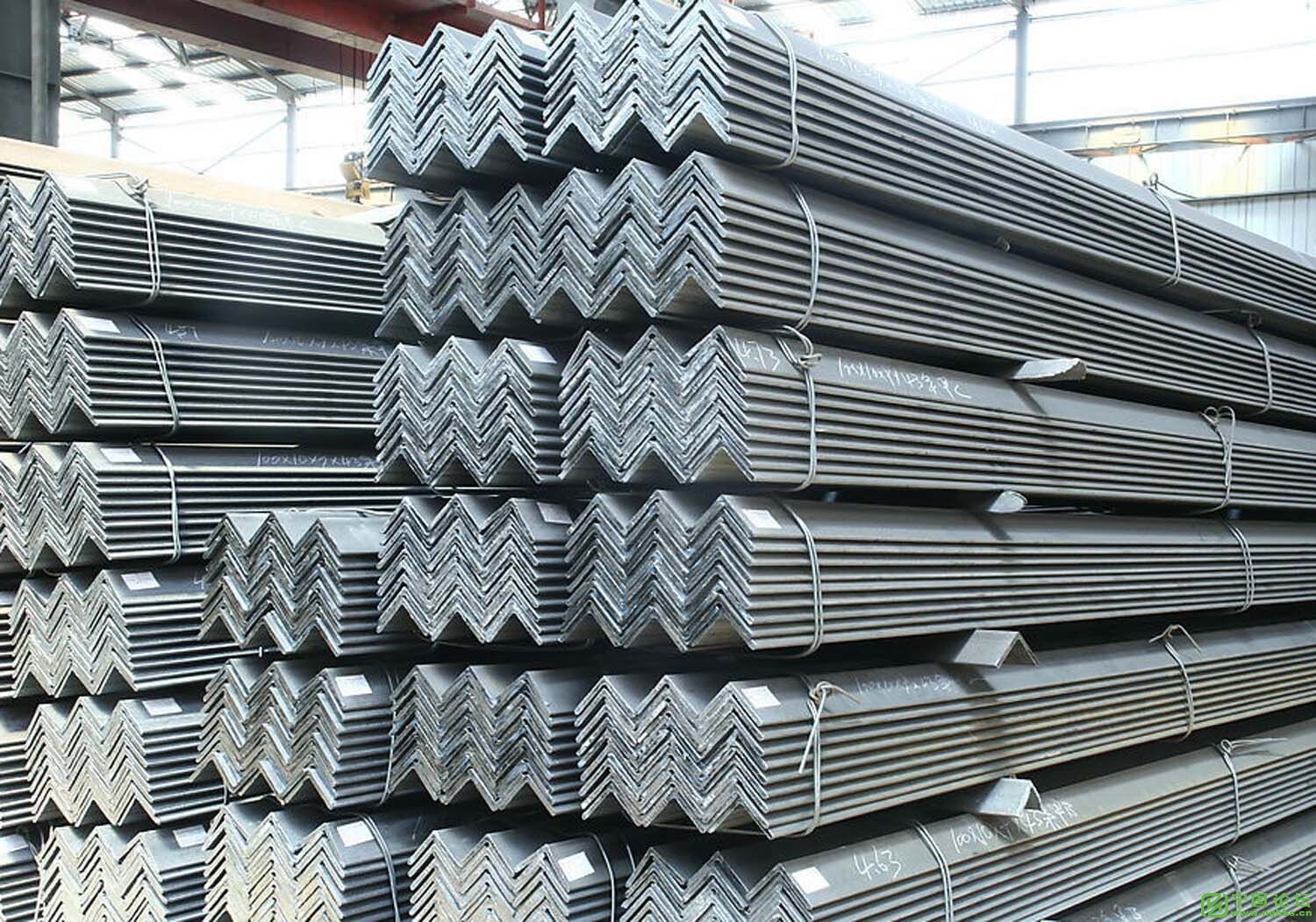

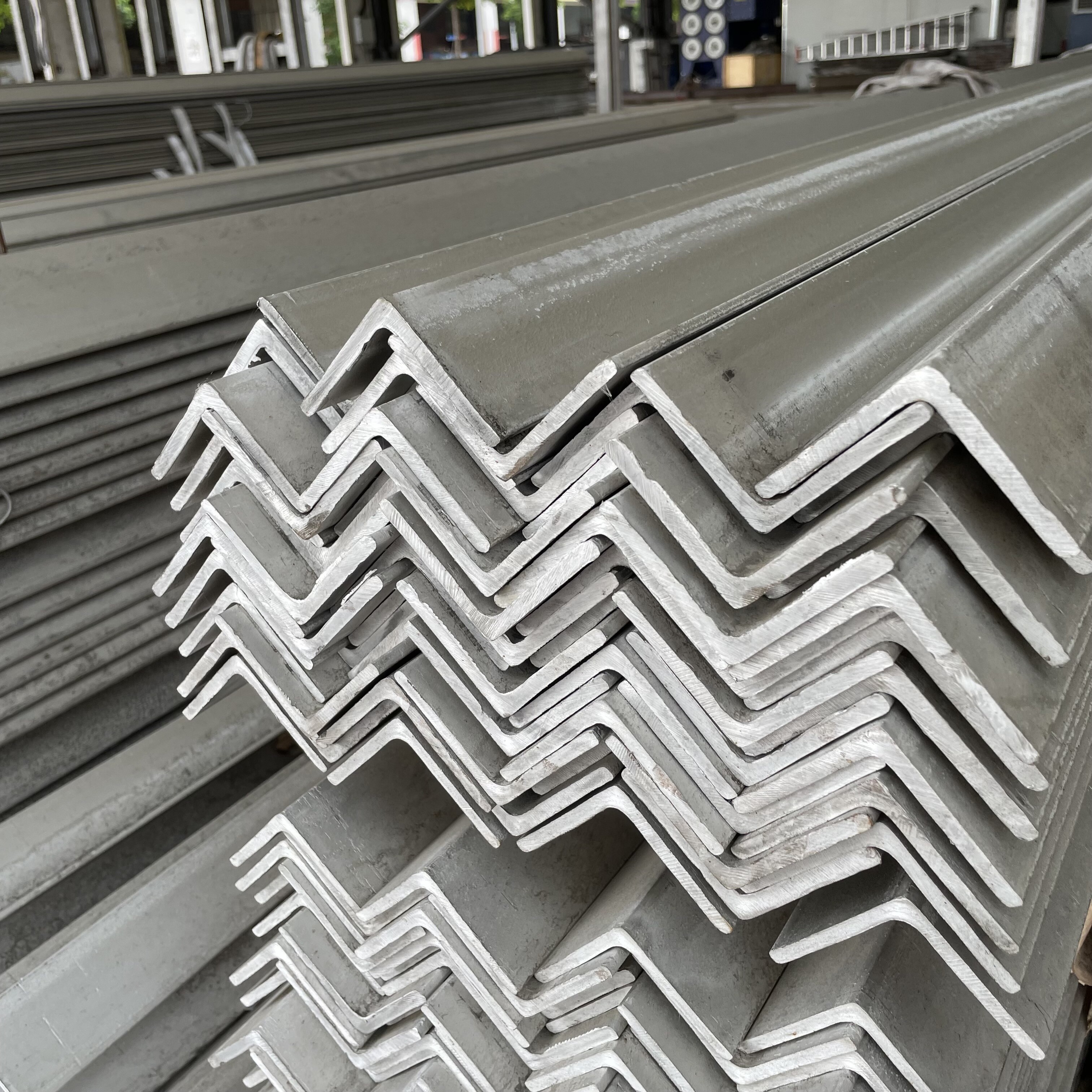

Angle joint plate, also known as Angle iron, is a long steel bar with vertical angles on both sides. There are equal angles and unequal angles. The two sides of an equilateral Angle are equal in width. Its specifications are expressed in millimeters of side width × side width × side thickness. Angle steel can be composed of a variety of different stress components according to the structure, and can also be used as a connector between components. It is widely used in various building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable ditch supports, power piping, and bus support installation. And warehouse shelves and other Angle steel is a carbon structural steel for construction, is a simple section of steel steel, mainly used for metal components and plant frames.
Product name | ASTM A36 Carbon Equal Steel Angle Bar |
Standard | ASTM AISI JIS DIN Etc |
Grade | SS400-SS540 Series Etc |
Model Number | 25#-200# |
Type | Equal Or Unequal |
Application | Building Construction Industry Etc |
Tolerance | ±1% |
Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
Alloy Or Not | Non-Alloy |
Invoicing | by actual weight |
Delivery Time | within 7 days |
Technique | Hot Rollled |
Length | 1-12m or customized |
Thickness | 3-17mm or customized |
Material | Q195 Q235 Q355 Etc |
Package | Standard Sea-worthy Packing |
Keywords | Angle Bar |
Surface | Black/Bright Etc |
MOQ | 1 Ton |
We accept custom orders of various sizes. |
Steel Structure Workshop, Prefabricated Steel Structure Building:
1. Light weight, high strength, 50years durable use, no construction waste.
2. Quality certification: ISO9001: 2008,ISO14001:2004
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc.
6. Structural durability, easy maintenance.

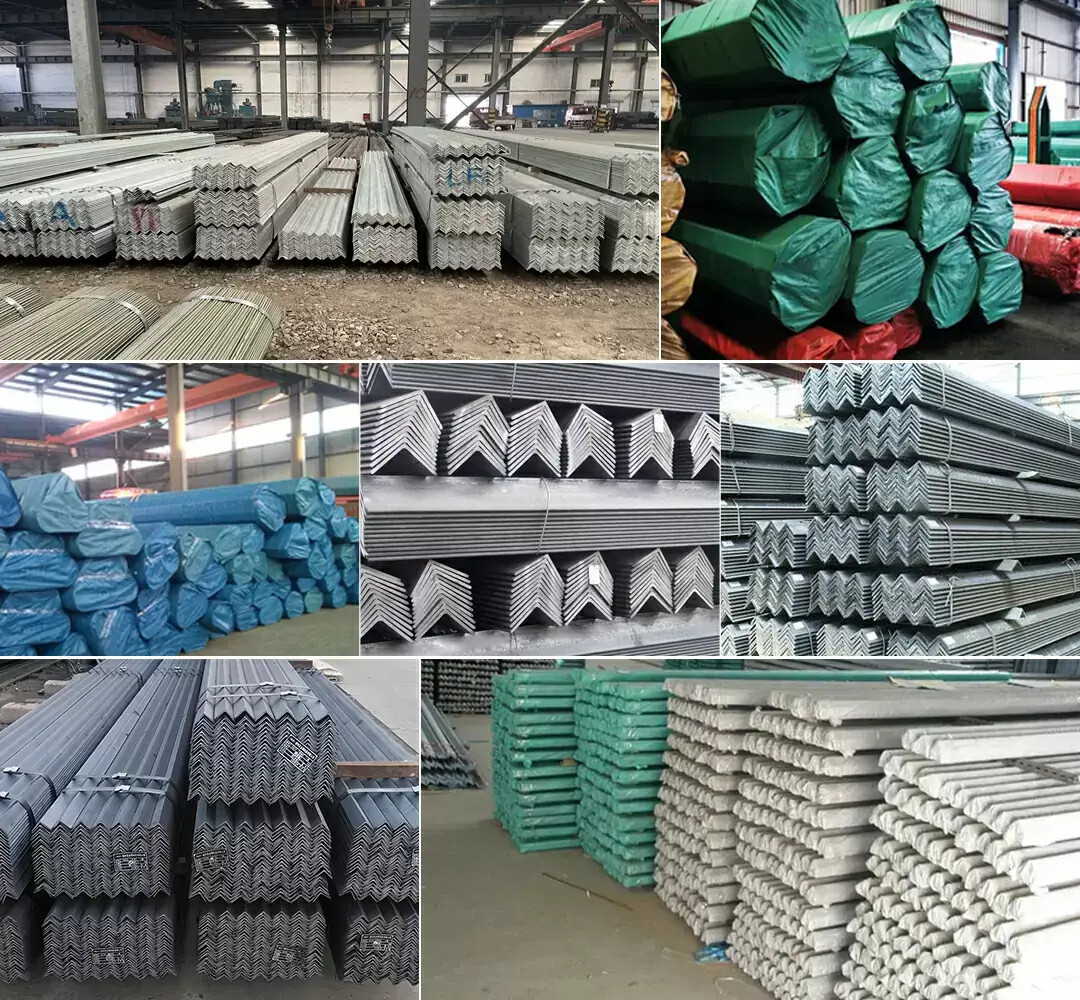

Angel Steel Package and Delivey
Small quantity loaded by containers, big quantity loaded by Bulk Vessel. 6m can load into 20ft container and 12m can load into 40ft container.
Packing | 1.Without Packing2.Waterproof Packing with Wooden Pallet3.Waterproof Packing with Steel Pallet4.Seaworthy Packing(waterproof packing with steel strip inside, then packed with steel sheet with steel pallet) |
Container Size | 20ft GP:5898mm(L)x2352mm(W)x2393mm(H) 24-26CBM40ft GP:12032mm(L)x2352mm(W)x2393mm(H) 54CBM40ft HC:12032mm(L)x2352mm(W)x2698mm(H) 68CBM |
Transportation | By Container or By Bulk Vessel |
Product name | Angel Steel |
Equal Angle Steel Sizes |
Size(mm) | Thickness (mm) | Theoretic weight (kg/m) | Size(mm) | Thickness (mm) | Theoretic weight (kg/m) |
20*20*3 | 3 | 0.885 | 80*80*8 | 8 | 9.55 |
25*25*3 | 3 | 1.12 | 90*90*6 | 6 | 8.25 |
30*30*3 | 3 | 1.36 | 90*90*7 | 7 | 7.35 |
30*30*4 | 4 | 1.78 | 90*90*8 | 8 | 109 |
30*30*5 | 5 | 2.16 | 90*90*9 | 9 | 12.2 |
38*38*3 | 3 | 1.72 | 90*90*10 | 10 | 13.3 |
38*38*4 | 4 | 2.26 | 100*100*6 | 6 | 9.22 |
40*40*3 | 3 | 1.83 | 100*100*7 | 7 | 10.7 |
40*40*4 | 4 | 2.41 | 100*100*8 | 8 | 12.1 |
40*40*5 | 5 | 2.95 | 100*100*9 | 9 | 13.5 |
50*50*3 | 3 | 2.33 | 100*100*10 | 10 | 14.9 |
50*50*4 | 4 | 3.06 | 100*100*12 | 12 | 17.8 |
50*50*5 | 5 | 3.77 | 120*120*8 | 8 | 14.7 |
50*50*6 | 6 | 4.43 | 120*120*10 | 10 | 18.2 |
70*70*5 | 5 | 5.37 | 120*120*12 | 12 | 21.5 |
70*70*6 | 6 | 6.38 | 130*130*9 | 9 | 17.9 |
70*70*7 | 7 | 7.35 | 130*130*10 | 10 | 19.7 |
75*75*5 | 5 | 5.76 | 130*130*12 | 12 | 23.4 |
75*75*6 | 6 | 6.85 | 150*150*10 | 10 | 22.9 |
75*75*7 | 7 | 7.94 | 150*150*12 | 12 | 27.3 |
75*75*8 | 8 | 8.92 | 150*150*15 | 15 | 33.6 |
75*75*9 | 9 | 9.96 | 200*200*15 | 15 | 45.3 |
80*80*6 | 6 | 7.32 | 200*200*20 | 20 | 59.7 |
80*80*7 | 7 | 8.48 | 200*200*24 | 24 | 71.1 |
Unequal Angle Steel Sizes |
25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
75*50*6 | 5.699 | 110*70*10 | 13.476 |
|
|

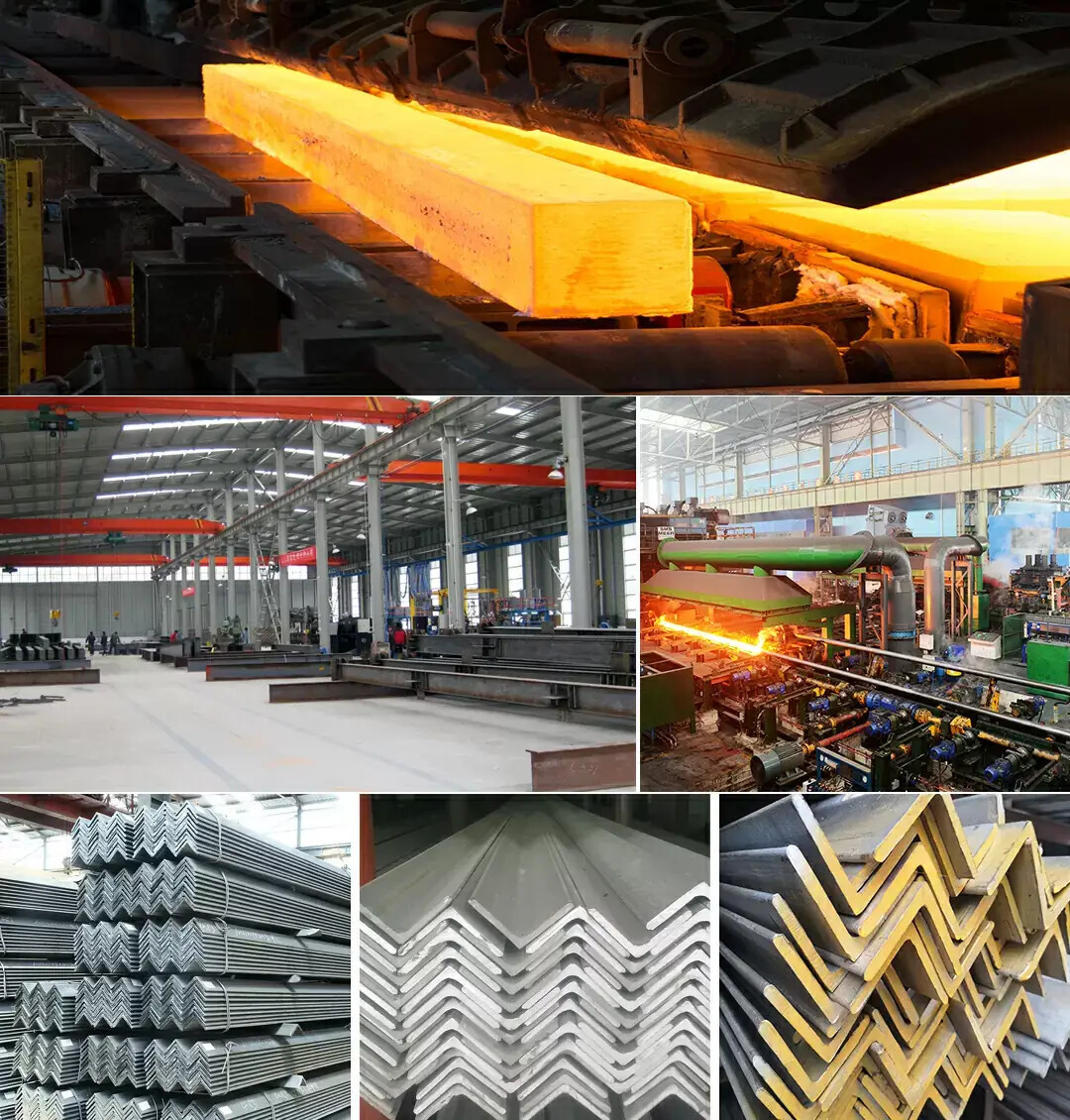

Angle steel is a carbon structural steel for construction. It is a simple section of section steel, mainly used for metal components and the frame of the workshop. It is required to have good weldability, plastic deformation and mechanical strength in use. The raw billet for Angle steel production is low carbon square steel, and the finished Angle steel is delivered in hot rolled forming, normalizing or hot rolled state. Angle steel commonly known as Angle iron, is perpendicular to each other into angular steel strip.
Angle steel is a common metal products, mainly used in construction, process decoration, machinery manufacturing and other fields. The raw materials of Angle steel are mainly hot-rolled or cold-rolled steel plates, and steel plates of different thickness and size are selected according to needs. The selected steel plate is cut to the required Angle steel size according to the design requirements. The shape of the Angle steel is formed by the roller press. Through the action of a roller, the steel plate is pressed into the desired Angle shape. After the welding Angle steel is formed, it is necessary to weld the connected part, and after the welding is completed, it is necessary to carry out pickling treatment to remove the dirt and oxide on the surface. After the surface treatment is completed, the Angle steel needs to be shaped, and the quality of the Angle steel is checked, including the size, shape, welding quality and other aspects. Qualified Angle steel can be packaged and labeled and stored as needed.

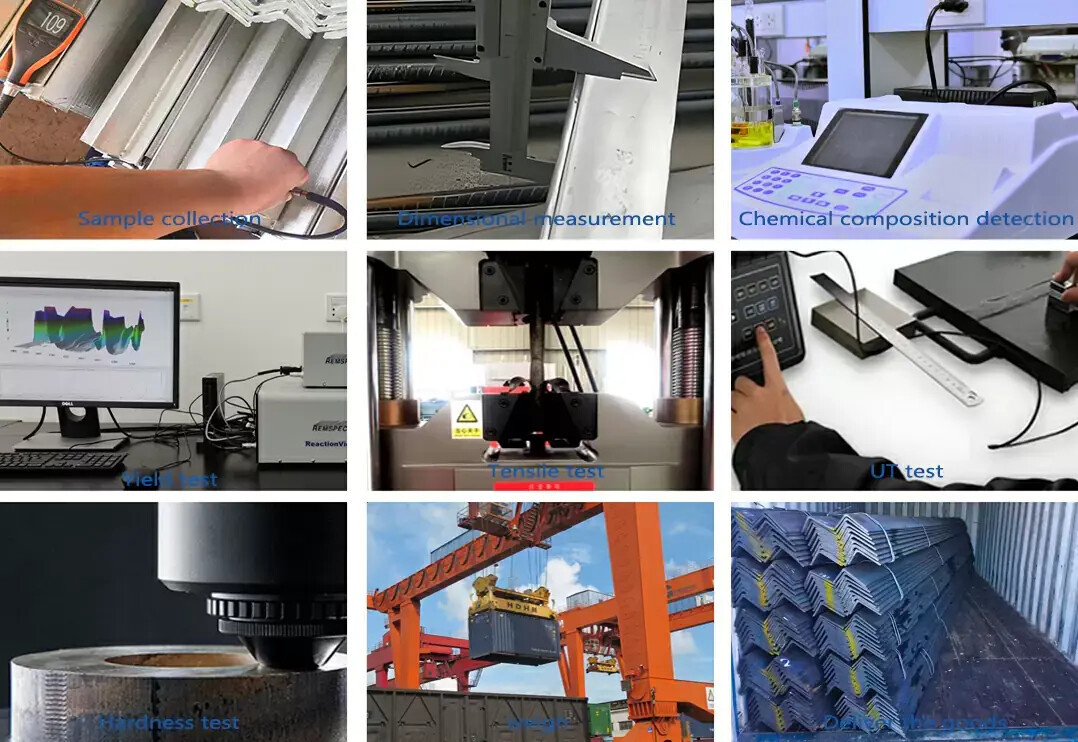

In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.
Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.
